2.5-13x56 Stratos ļoti jaudīgs, īpaši ērts tēmēklis gaišai dienai un naktī, un tā pirmajā fokālajā plaknē ir FlashDot tīkliņš. Tēmēklis piedāvā izvēles lodes kritiena kompensāciju (BDC II modelis) šaušanai lielos attālumos.
Product categories
Schmidt & Bender 2.5-13x56 Stratos LMZ FD7 1 cm cw Posicon riflescope
- Manufacturer: Schmidt & Bender
- Product code: 751-Z11-707
- Availability: Available immediately
€2280.00
Schmidt & Bender 2.5-13x56 Stratos LMZ FD7 1cm cw Posicon tēmēklis
Product description
Product technical specification
Optical characteristics
| Eye relief (mm) | 90 |
| Exit pupil (mm) | 12 ... 4.3 |
| Magnification | 2.5 ... 13 x |
| Eyepiece diopter adjustment | -3 / +2 |
| Optical coatings | Fully, multiple |
| Light transmission (%) | 90 |
| Eyepiece diameter (mm) | 43.1 |

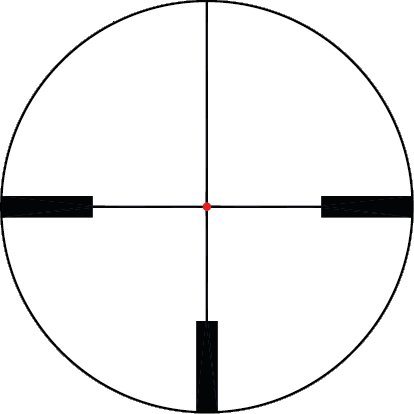

| Reticle type | FD7 |
| Mounting diameter (mm) | 30 |
| Lens diameter (mm) | 56 |
| Focal plane | 1. |
Operational characteristics
| Operating temperature (°C) | -25 ... +55 |
| Power supply (V) | No |
| Turrets | Posicon CT / Posicon CT |
| Turret locking | No |
| Zero Stop | No |
| Nr. Turret Turns | MT - Multi Turn |
| Elevation (mrad) | 18 |
| Elevation (MOA) | 61 |
| Windage (mrad) | 18 |
| Windage (MOA) | 61 |
| Elevation Per Turn | 6 MRAD - 60 cm |
| Reticle illumination | Yes |
| Illumination color | Red |
| Dot size | 0MOA |
| Parallax setting | 100 m |
| Parallax adj. range | 100 m |
| Turret type | cw - clokcwise |
General
| Warranty | 10 years |
| Colour | Black |

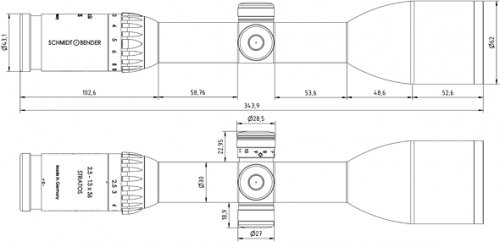

| Length (mm) | 344 |
| Series | Stratos |
| Made in | Germany |
Field of view
| Twilight factor | 8.7 - 29.9 |
| Field of view at 100 m (m) | 2.7 ... 14.2 |
Special features
| Waterproofness | Yes |
| Nitrogen filled (fogproof) | Yes |
| Fogproof | Yes |
| Shockproof | Yes |
